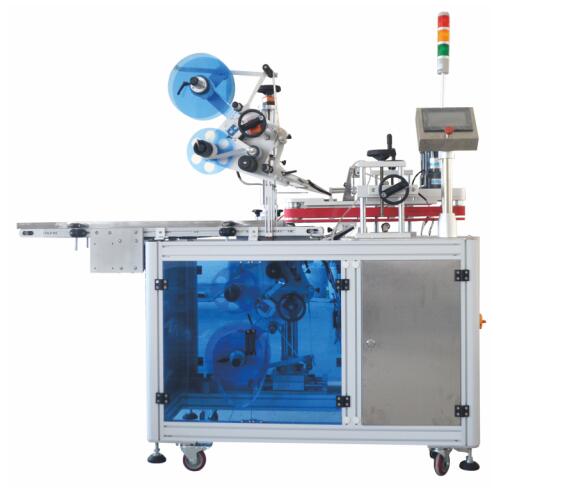

Top and bottom double labeling machine
Basic Use
Automatic double labeling machine is applicable to the planar objects of which two different planes can be labeled at the mean time and the direction is uniformed. Each labeling header can work independently. Laser marking machine is optional, printing production dates and batch numbers on the label to achieve labeling - coding integration. This product can be assembled in a packaging line.
Product Characteristics:
The function is powerful in one-time labeling. The process is simplified and the production efficiency is improved.
The application is flexible. Each labeling header can be controlled independently and can label one or both sides.
The adjustment is very convenient. It is configured with the X/Y/Z shaft adjusting seat. The header can be given Omni-directional adjustment. The product switching is simple and quick.
Intelligent controlled, this machine has functions in automatic photoelectric tracking, no labeling for nothing, and automatic detection & correction function without labels, so as to prevent missing label and wasting stickers.
It is firm and healthy. The main materials are stainless steel and high grade aluminum alloy, which are solid structure in accordance with the GMP production requirements.
Stability is high. The advanced electronic control system which is comprised of imported electrical components supports the equipment running for 7 x 24 hours
|
名稱 Product name. |
平面貼標機 Plane labeling machine |
側面搓滾貼標機 Side roller labeling machine |
圓柱臥式貼標機 Cylinder horizontal labeling machine |
雙面貼標機 Double side labeling machine |
|
型號 Model No. |
ZF-TBP150 |
ZF-TBC130 |
ZF-TBW300 |
ZF-TBS100 |
|
機器尺寸Machine size (mm) L x W x H |
1500*880*1650 |
2000*900*1200 |
2050*980*1750 |
2000*1200*1900 |
|
適用產品范圍Applicable product size (mm) 直徑x高度 Diameter x Hight |
500L×400W×150H |
直徑(85-150)×高(30-300) Diameter(85-150)X Hight(30-300) |
直徑(40-150)×寬(50-350) Diameter(40-150)X Width(50-350) |
直徑(40-130)×高(15-80) Diameter(40-130)X Hight(15-80) |
|
電壓Voltage |
220V /50HZ |
220V /50HZ |
220V /50HZ |
220V /50HZ |
|
耗電 Power consumption (Kw) |
2 KW |
2 KW |
2 KW |
2 KW |
|
貼標速度/分鐘 Labeling speed per minute |
40-120包 40-120packs |
40-120包 40-120packs |
40-100包 40-100packs |
40-100包 40-100packs |
